1mm dia x 1mm thick Round Small Disc Neodymium N35 Grade Tiny Rare Earth Magnets Amazon fro Crafts Magnets where to buy small magnets
These small Neodymium disc magnets are the smallest in our range. When used to attract another magnet, rather than a metal surface such as steel the pull strength between the two magnets will be effectively double creating an incredible pull for their size. Every magnet
is coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth and clean finish and are commonly used by universities and research departments to secure tiny parts under a microscope. They are also often used in creative applications, emballasje, engineering and manufacturing where small size and maximum strength are required.
Teknisk informasjon | |
---|---|
Modell-ID | D-01-01-ZN |
Materiale | NdFeB, Karakter N35 |
Form | Disk / Rund |
Type | Fast |
Sammensatte | Neodymmagnet |
Diameter | 1 mm |
Høyde | 1 mm |
Toleranse | +/- 0.05 mm |
Belegg | ZN-plated (Sink) |
Magnetisering | Aksial (Stolper på flate ender) |
styrke | aprox. 25g |
Maks. arbeidstemperatur | 176°F (80°C) |
Curie temperatur | 310 °C |
vekt(1 stykke) | 0.01 g |
Restmagnetisme Br | 13700-14200 G, 1.37-1.42 T |
Tvangsfeltstyrke bHc | 10.8-12.5 du, 860-995 kA/m |
Tvangsfeltstyrke iHc | ≥12 kOe, ≥955 kA/m |
Energiprodukt (BxH)maks | 35MGO |

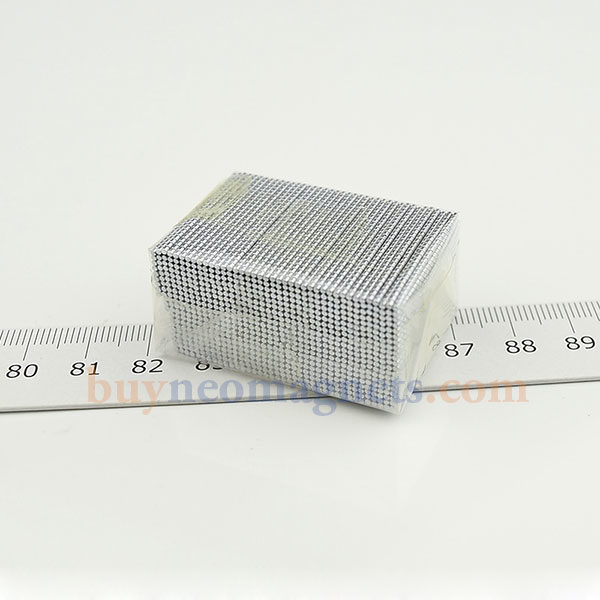

These discs are incredibly small. They are too difficult to count exactly, so we will make sure you get more than the quantity you order. Even though these discs are tiny, just one or two of these incredible magnets will hold a sheet of 8 1/2″ x 11″ paper to a fridge or filing cabinet.
