1mm dia x 5mm thick Neodymium Cylinder Magnets N42 Zinc-Plated Powerful Round Magnets Super Strong Small magnets for Sale Amzon Home Depot neodymium magnets uk

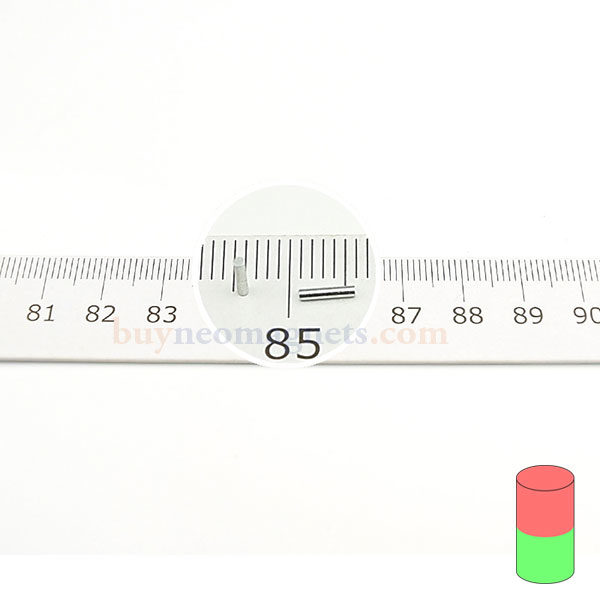

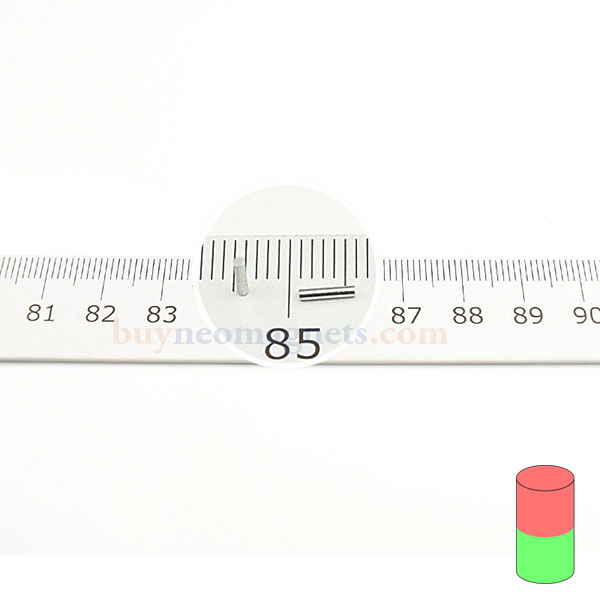

- 1mm diameter x 5mm thickness
- Each magnet’s north and south pole are on opposite 1mm diameter faces
- Each magnet can support a steel weight of up to 0.18kg vertically from the magnetic face when in flush contact with a mild steel surface
- Utmerket motstand mot avmagnetisering
- Belagt med tre lag nikkel, kobber og nikkel for å redusere korrosjon og gi en jevn og ren finish
Teknisk informasjon | |
---|---|
Modell-ID | D-01-05-ZN |
Materiale | NdFeB, Karakter N42 |
Form | stang / Sylinder |
Type | Fast |
Sammensatte | Neodymmagnet |
Diameter | 1 mm |
Høyde | 5 mm |
Toleranse | +/- 0.05 mm |
Belegg | ZN-plated (Sink) |
Magnetisering | Aksial (Stolper på flate ender) |
styrke | aprox. 180g |
Maks. arbeidstemperatur | 176°F (80°C) |
Curie temperatur | 310 °C |
vekt(1 stykke) | 0.03 g |
Restmagnetisme Br | 13700-14200 G, 1.37-1.42 T |
Tvangsfeltstyrke bHc | 10.8-12.5 du, 860-995 kA/m |
Tvangsfeltstyrke iHc | ≥12 kOe, ≥955 kA/m |
Energiprodukt (BxH)maks | 42MGO |

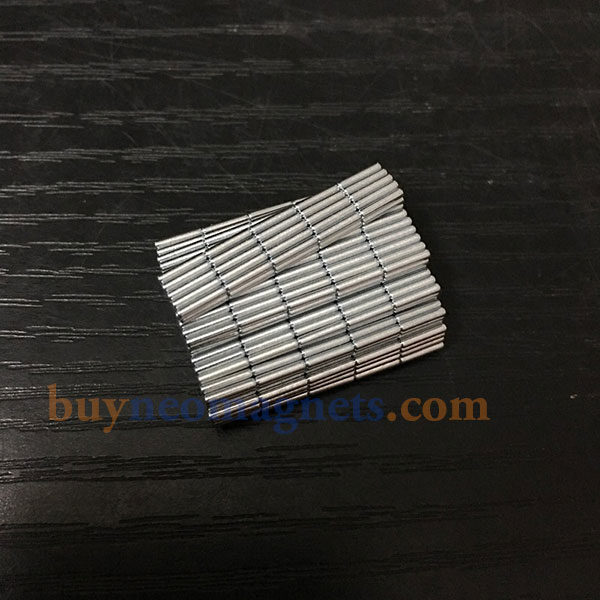

These 1mmx5mm rare earth cylinder magnets are incredibly small. They are too difficult to count exactly, so we will make sure you get more than the quantity you order. Even though these discs are tiny, just one or two of these incredible magnets will hold a sheet of 8 1/2″ x 11″ paper to a fridge or filing cabinet.
