2.5mm dia x 2.5mm thick Small Round Neodymium Disk Magnets N45 Nickel Plated Flat Magnets Home Depot Mini Rare Earth Disc Magnets Amazon for Sale where to get neodymium magnets magnetic disc

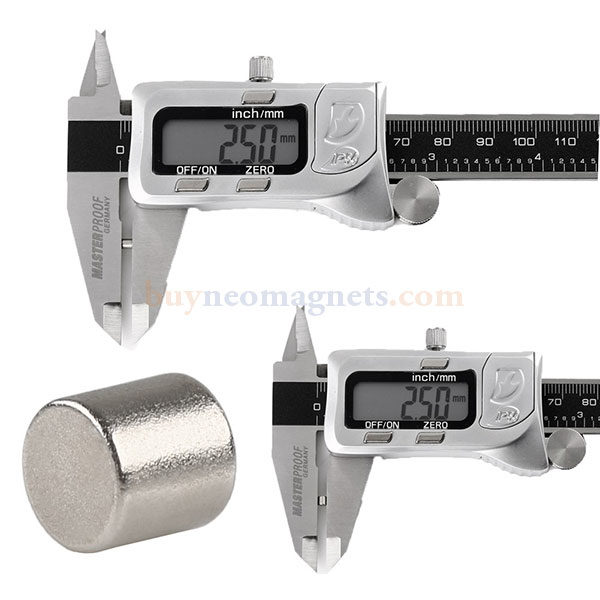

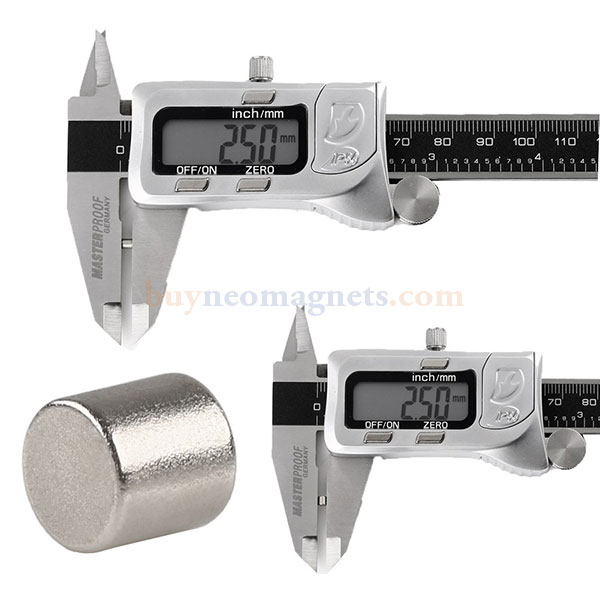

- 2.5mm diameter x 2.5mm thickness

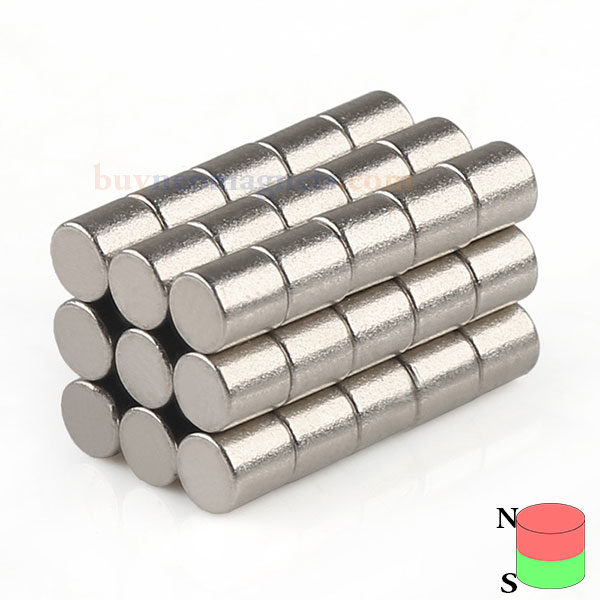

- Each magnet’s north and south pole are on opposite 2.5mm diameter faces
- Each magnet can support a steel weight of up to 0.1kg vertically from the magnetic face when in flush contact with a mild steel surface
- Utmerket motstand mot avmagnetisering
- Coated with three layers of zinc reduce corrosion and provide a smooth and clean finish
Teknisk informasjon | |
---|---|
modell ID | D-2.5-2.5-N |
Materiale | NdFeB, grade N45 |
Form | Disk / Rund / Plate |
Type | Fast |
Sammensatte | Neodymmagnet |
Diameter | 2.5 mm |
Høyde | 2.5 mm |
Toleranse | +/- 0.1 mm |
Belegg | Zn-belagt (Sink) |
Magnetisering | Aksial (Stolper på flate ender) |
styrke | ca.. 100g |
Maks. arbeidstemperatur | 176° F (80° C) |
Curie temperatur | 310 ° C |
vekt(1 stykke) | 0.09 g |
Restmagnetisme Br | 13700-14200 G, 1.37-1.42 T |
Tvangsfeltstyrke bHc | 10.8-12.5 du, 860-995 kA/m |
Tvangsfeltstyrke iHc | ≥12 kOe, ≥955 kA/m |
Energiprodukt (BxH)maks | 35MGO |
Despite its tiny size, this disc magnet with a 2.5 mm diameter and a height of 2.5 mm still has an adhesive force of 100 g.
