2mm dia x 1.5mm thick Neodymium Disc Magnets Round Small Disk Rare Earth Grade N35 Magnets Nickel Plated Flat Magnets Amazon for Sale Neodymium Magnets Canada
These discs are incredibly small. Tiny high-performance Neodymium (N35) magneter, ideal for research, technology and crafts alike.
- Pakke med 100
- 2mm diameter x 1.5mm thick
- +/-0.05mm toleranse

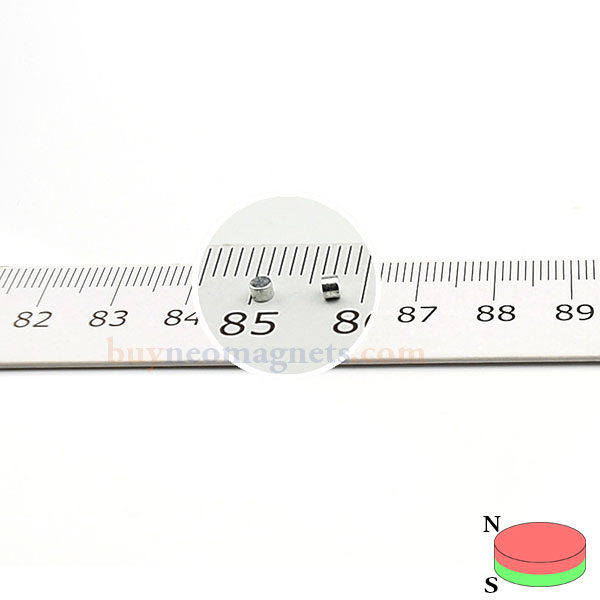

- Each magnet’s north and south pole are on opposite 2mm diameter faces
- Each magnet can support a steel weight of up to 0.08kg vertically from the magnetic face when in flush contact with a mild steel surface
- Utmerket motstand mot avmagnetisering
- Belagt med tre lag nikkel, kobber og nikkel for å redusere korrosjon og gi en jevn og ren finish
Teknisk informasjon | |
---|---|
Modell-ID | D-02-1.5-N |
Materiale | NdFeB, Karakter N35 |
Form | Disk / Rund |
Type | Fast |
Sammensatte | Neodymmagnet |
Diameter | 2 mm |
Høyde | 1.5 mm |
Toleranse | +/- 0.05 mm |
Belegg | Forniklet (Ni-Cu-Ni) |
Magnetisering | Aksial (Stolper på flate ender) |
Styrke | ca. 80g |
Maks. arbeidstemperatur | 176°F (80°C) |
Curie temperatur | 310 °C |
vekt(1 stykke) | 0.036 g |
Restmagnetisme Br | 13700-14200 G, 1.37-1.42 T |
Tvangsfeltstyrke bHc | 10.8-12.5 du, 860-995 kA/m |
Tvangsfeltstyrke iHc | ≥12 kOe, ≥955 kA/m |
Energiprodukt (BxH)maks | 35MGO |
These small Neodymium disc magnets are some of the smallest in our range. When used to attract another magnet, rather than a metal surface such as steel the pull strength between the two magnets will be effectively double creating an incredible pull for their size. Every magnet is coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth and clean finish and are commonly used by craft and model-makers. They are also often used in creative applications, emballasje, engineering and manufacturing where small size and maximum strength are required.
