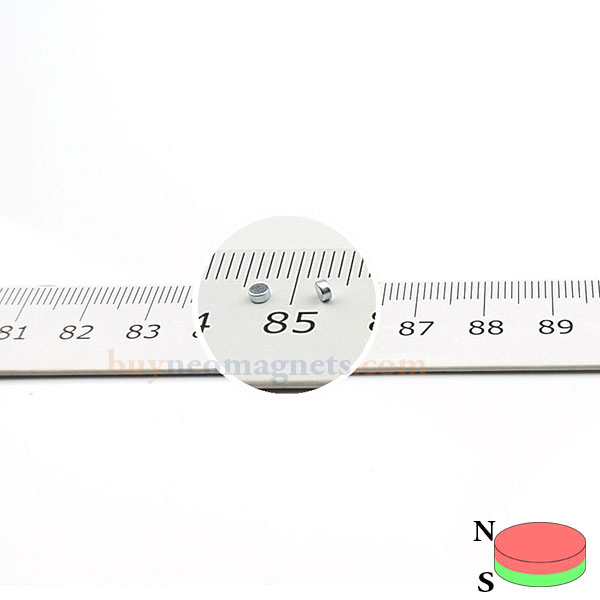

- 2.5mm diameter x 1mm thickness
- Each magnet’s north and south pole are on opposite 2.5mm diameter faces
- Each magnet can support a steel weight of up to 0.08kg vertically from the magnetic face when in flush contact with a mild steel surface
- Excellent resistance to demagnetisation
- Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth and clean finish
Technical information | |
---|---|
Model ID | D-2.5-01-ZN |
Material | NdFeB, Grade N35 |
Shape | Disk / Round |
Type | Permanent |
Composite | Neodymium Magnet |
Diameter | 2.5 mm |
Height | 1 mm |
Tolerance | +/- 0.05 mm |
Coating | Nickel-plated (Ni-Cu-Ni) |
Magnetisation | Axial (Poles on Flat Ends) |
strength | aprox. 80g |
Max. working temperature | 176°F (80°C) |
Curie temperature | 310 °C |
weight(1 piece) | 0.03 g |
Residual magnetism Br | 13700-14200 G, 1.37-1.42 T |
Coercive field strength bHc | 10.8-12.5 kOe, 860-995 kA/m |
Coercive field strength iHc | ≥12 kOe, ≥955 kA/m |
Energy product (BxH)max | 35MGOe |
Despite its tiny size, this disc magnet with a 2.5 mm diameter and a height of 1 mm still has an adhesive force of 60 g.
